Setting Up an HP Scanner on Linux with HPLIP and SANE

· updated April 11, 2026

Configuring an HP all-in-one printer’s scanner on Linux requires HPLIP (HP Linux Imaging and Printing) for device support and SANE (Scanner Access Now Easy) for scanning functionality. The main gotcha is that a working printer doesn’t guarantee a working scanner — they use different subsystems and need separate configuration.

Installing Required Packages

Start by installing HPLIP, SANE backends, and a scanning frontend:

# Debian/Ubuntu
apt-get install hplip sane sane-backends simple-scan

# Fedora/RHEL/CentOS
dnf install hplip sane sane-backends simple-scan

# Arch Linux
pacman -S hplip sane

sane-backends provides the scanner drivers, while simple-scan is a lightweight GUI alternative to the older xsane. You may also need libusb and cups (usually pre-installed) for USB device communication.

Running the HP Setup Utility

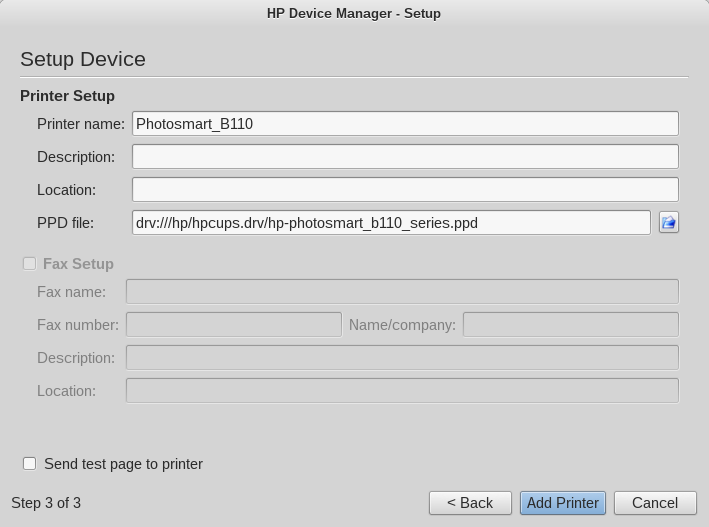

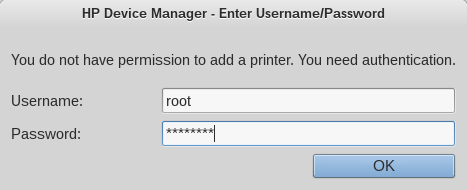

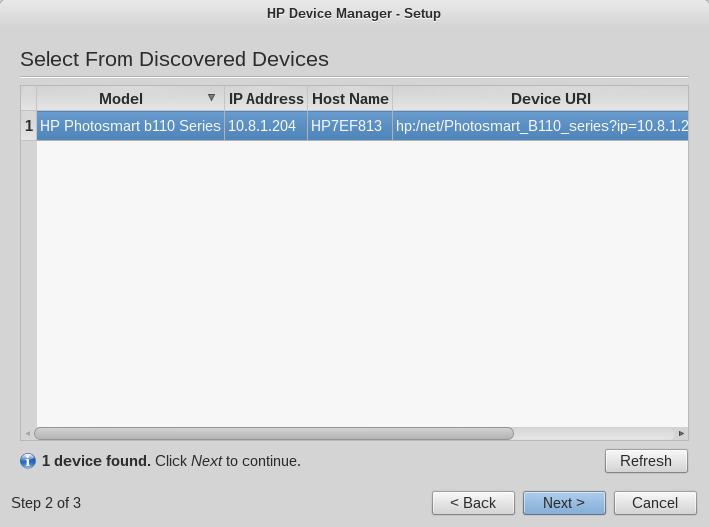

Execute the HPLIP setup tool to detect and configure your device:

sudo hp-setup

This interactive utility will:

For USB devices, select USB when prompted. For networked printers, select JetDirect (port 9100) or SNMPv3 depending on your setup.

Verifying Scanner Detection

After setup, confirm SANE recognizes your scanner:

scanimage -l

You should see output like:

Device: hp:libusb:001:005
  Canon LiDE 110 flatbed scanner

If nothing appears, your scanner isn’t detected. Check user permissions:

sudo usermod -aG scanner,lp $USER

Log out completely and back in — group membership changes require a fresh login session. Simply opening a new terminal won’t work.

Checking for Proprietary Plugins

Some HP scanner models require proprietary firmware. Install plugins if needed:

sudo hp-plugin -i

This downloads and installs closed-source components for models that require them. After installation, restart SANE:

sudo systemctl restart saned

Troubleshooting Device Detection

If your scanner still isn’t detected, verify the device is connected:

lsusb | grep -i hp

If it appears in lsusb but not in scanimage -l, reload SANE:

sudo systemctl restart saned

Check SANE configuration for blacklisting:

grep -r "blacklist" /etc/sane.d/

Remove any blacklist entries that match your device model.

For network scanners, ensure connectivity:

ping <scanner-ip>
scanimage -h <scanner-ip>

Scanning via GUI

Launch the default SANE frontend:

simple-scan

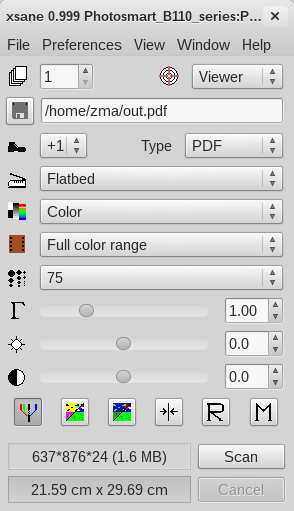

Or use the older but more feature-rich xsane:

xsane

Command-Line Scanning

For scripting and automation, use scanimage directly:

# List scanner-specific options
scanimage -A

# Scan at 300 DPI to PPM (uncompressed)
scanimage --resolution 300 > scan.ppm

# Scan to JPEG
scanimage --resolution 300 --format=jpeg > document.jpg

# Scan with ADF (automatic document feeder) if available
scanimage --source "Automatic Document Feeder" > multi.ppm

# Preview mode (faster, lower quality)
scanimage --preview > preview.ppm

Convert PPM to more practical formats:

# PPM to PDF
convert scan.ppm scan.pdf

# PPM to PNG
convert scan.ppm scan.png

# Batch convert multiple PPMs
for file in *.ppm; do convert "$file" "${file%.ppm}.pdf"; done

Full Test Workflow

Verify your complete setup:

# Check scanner access
scanimage -A | head -20

# Perform a test scan
scanimage --resolution 150 > test.ppm

# Verify the file was created and has content
ls -lh test.ppm
file test.ppm

# Convert to practical format
convert test.ppm test.pdf

Common Issues and Solutions

Permission denied when scanning:

# Verify your user is in required groups
groups $USER

# Should show: username : username scanner lp ...
# If not, add yourself and reload:
sudo usermod -aG scanner,lp $USER
newgrp scanner

CUPS connection fails:

sudo systemctl status cups
sudo systemctl restart cups

Scanner works as root but not as regular user:

This is always a permissions issue. Verify group membership with groups $USER and use newgrp scanner to activate the group in your current shell without logging out.

Networked scanner times out:

Ensure the scanner is on the same network and reachable. Check if your router’s firewall is blocking port 9100 or the SANE discovery port (6566 UDP).

Once scanimage -l shows your device and test scans complete successfully, your HP scanner is ready for regular use.
