Export PowerPoint Slides at Higher DPI for Better Print Quality

· Eric Ma

PowerPoint exports slides at 96 DPI by default, which is too low for professional printing. Print shops typically require 150 DPI for acceptable quality or 300 DPI for high-quality output. The UI export options in PowerPoint don’t reliably control the actual output DPI—you need to change a registry setting on Windows or use alternative methods on macOS.

Windows: Registry-Based DPI Control

The export resolution is controlled by the ExportBitmapResolution registry key. PowerPoint reads this value on export and maxes out at 307 DPI.

Locate Your Office Version

Open PowerPoint and go to File → Account (or Help on older versions) to find your version number:

The registry path is: HKEY_CURRENT_USER\Software\Microsoft\Office\VERSION\PowerPoint\Options

Replace VERSION with your number (e.g., 16.0 for Office 2019/365).

DPI to Hexadecimal Conversion

The ExportBitmapResolution value uses hexadecimal format:

DPI Hex Value
96 (default) 0x60
150 0x96
200 0xC8
300 0x12C
307 (maximum) 0x133

Method 1: Registry File (.reg)

Create a file named powerpoint-dpi-300.reg and add this content for Office 365/2019/2016:

Windows Registry Editor Version 5.00

[HKEY_CURRENT_USER\Software\Microsoft\Office\16.0\PowerPoint\Options]
"ExportBitmapResolution"=dword:0000012c

Then:

  1. Close PowerPoint completely

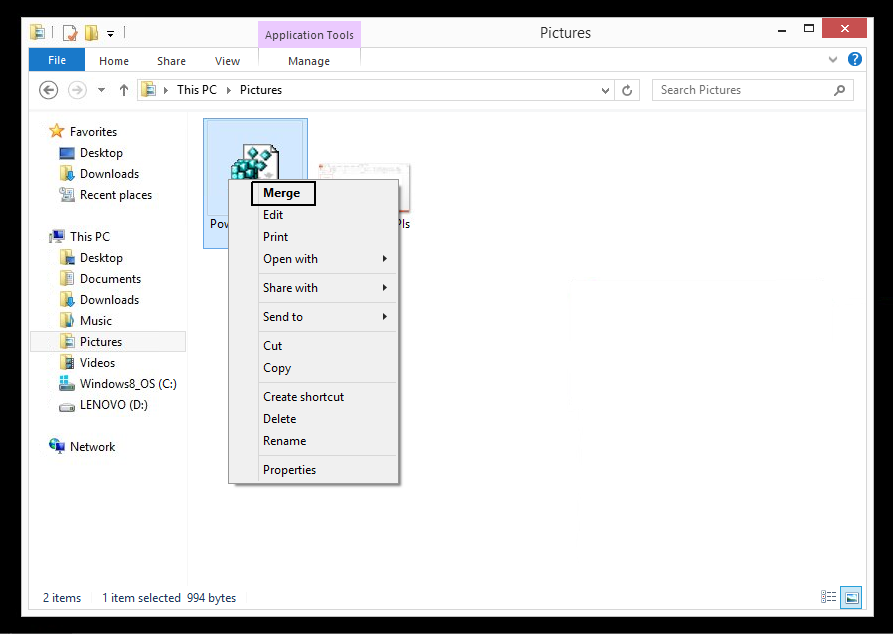

  2. Right-click the .reg file and select Merge
  3. Confirm the Windows User Account Control prompt
  4. Restart PowerPoint

For multiple Office versions, add separate registry sections:

Windows Registry Editor Version 5.00

[HKEY_CURRENT_USER\Software\Microsoft\Office\16.0\PowerPoint\Options]
"ExportBitmapResolution"=dword:0000012c

[HKEY_CURRENT_USER\Software\Microsoft\Office\15.0\PowerPoint\Options]
"ExportBitmapResolution"=dword:0000012c

Method 2: Manual Registry Editor Access

  1. Press Win+R, type regedit, and press Enter
  2. Navigate to HKEY_CURRENT_USER\Software\Microsoft\Office\16.0\PowerPoint\Options (adjust version as needed)
  3. Right-click the empty space on the right and select New → DWORD (32-bit) Value
  4. Name it ExportBitmapResolution
  5. Double-click it and enter 300 (in decimal, not hex—the editor converts automatically)
  6. Click OK and close the registry editor
  7. Restart PowerPoint

macOS: Alternative Approach

macOS doesn’t expose this registry setting. Instead, export at standard resolution and use command-line tools to adjust metadata, or export directly to PDF and convert:

# Using sips (built-in on macOS) to set DPI metadata
sips -s dpiWidth 300 -s dpiHeight 300 input.png -o output.png

Note: This adjusts metadata only and doesn’t improve actual pixel quality.

Exporting at the New DPI

After applying the registry change:

  1. Open your presentation in PowerPoint
  2. Go to File → Export As (or Save As)
  3. Choose your format: PNG, JPEG, TIFF, or PDF
  4. Click Export and configure settings if prompted
  5. Save the file

Verify the DPI

Check the exported image’s DPI using ImageMagick’s identify command:

identify -verbose exported-slide.png | grep Resolution

Or on Windows with ImageMagick installed:

identify -verbose exported-slide.png | findstr Resolution

You should see output like:

Resolution: 300x300 PixelsPerInch

Post-Processing with ImageMagick

If you can’t or don’t want to change the registry, export at default resolution and re-sample afterward:

convert slide-96dpi.png -density 300 -units PixelsPerInch slide-300dpi.png

Be aware this only changes the DPI metadata—it doesn’t improve actual image quality. The pixel count stays the same. For genuine quality improvement, export at higher DPI directly from PowerPoint.

Revert to Default

To restore 96 DPI, either:

  1. Set ExportBitmapResolution to 0x60 in the registry
  2. Delete the ExportBitmapResolution key entirely (PowerPoint will use the default)

If you’re bulk-exporting slides, consider exporting to PDF first at high quality, then converting the PDF to images using ghostscript or pdfimages for better control.
